Hyundai U0416 — Expert Guide (Proven, Critical)
Direct answer: The Hyundai U0416 trouble code means the vehicle received invalid data from the Vehicle Dynamics Control (VDC) module. Fixing it requires a methodical scan and diagnosis of the VDC/ABS network and often module reprogramming or targeted diagnostics rather than guesswork — do not attempt unknown “repairs” without a full scan.
Key Takeaways
- hyundai u0416 reports invalid data from the Vehicle Dynamics Control module, a communication fault.
- Common causes include module faults, CAN-bus issues, low battery/voltage, or bad wheel-speed sensors.
- Correct steps: full OBD-II scan, verify power and grounds, inspect CAN wiring and connectors, test related sensors, then module programming or targeted replacement if needed.
- LockNCal handles module programming, vehicle diagnostics, and SRS/airbag system work — we do not perform general mechanical repairs.
What hyundai u0416 actually means
On Hyundai vehicles the code hyundai u0416 is logged when the vehicle’s network receives data from the VDC (Vehicle Dynamics Control) module that doesn’t match expected values, CRC checks, or timing. In plain English: a critical stability control module is sending invalid or corrupted messages over the vehicle data bus (CAN). That invalid data can trigger other warnings, disable stability or traction control features, and in some cases affect airbag/ABS behavior when modules stop trusting each other.
Symptoms drivers will notice
- Stability control, traction control, or ABS warning lights illuminated.
- Loss of stability/traction functions or an ABS light that won’t clear after a battery disconnect.
- Multiple communication-related DTCs appearing alongside U0416.
- Occasional hard braking or inconsistent ABS behavior in testing (very rare to notice while driving).
How technicians should diagnose U0416 (step-by-step)
This is the practical order of operations a competent shop or mobile technician should follow. It prioritizes safety, data, and avoids unnecessary part swapping.
1. Full scan with a professional scanner
Read all codes and freeze frame data. Note related codes (ABS, BCM, SRS, TCM) and time stamps. A single code bit alone isn’t enough to decide what to do next.
2. Confirm vehicle electrical health
- Check battery voltage at rest and during cranking (12.4–12.8V at rest; >13.5V when running).
- Verify main power and ground connections to the VDC/ABS module and nearby junctions.
3. Inspect physical connectors and CAN wiring

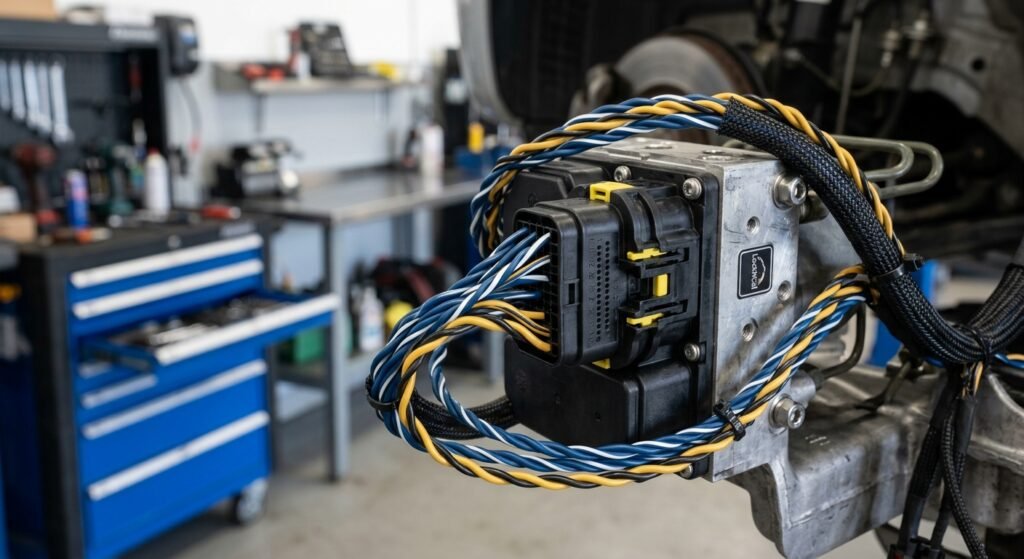

Unplug and visually inspect the VDC/ABS module connector(s) for corrosion, bent pins, or water intrusion. Wiggle tests and continuity checks on CAN high/low, power and ground help find intermittent faults.
4. Check sensors that feed VDC
- Wheel-speed sensors, yaw rate sensor, and steering angle sensor are top candidates. Compare live data values with wheel rotation or steering movement.
5. Module communication tests
Using a scope or advanced scan tool, verify CAN bus voltages and message traffic. An absent or noisy CAN message stream from the VDC is a strong indicator the module is at fault or there is a wiring short/open.
6. Software and programming checks
Sometimes the VDC or related module needs a reflash or programming update to restore correct message format or calibrations. Do not attempt board-level fixes — the correct next step is module programming or replacement per manufacturer procedures.
Common causes and the correct shop action
| Observed problem | Likely cause | Correct action |
|---|---|---|
| U0416 plus intermittent CAN errors | Open/short on CAN wiring, connector corrosion | Inspect/repair wiring or connector; then clear codes and retest |
| U0416 after low battery or jump start | Voltage spike or corrupted module memory | Verify voltage, clear codes, re-scan; module reprogramming if persistent |
| U0416 with failed wheel-speed readings | Bad wheel sensors or sensor harness | Test sensor outputs, replace faulty sensor; clear and verify |
| U0416 with no CAN traffic from VDC | Failed VDC module | Module programming or replacement following manufacturer procedures |
Why guessing or DIY “repair kits” is a bad idea
Because U0416 is a communication error, swapping random parts without verifying data flows wastes time and money. Manufacturer procedures call for diagnostic verification and often programming to restore correct messaging between modules. LockNCal does not perform mechanical “repairs” — we perform diagnostics, programming, resets, and safe calibrations consistent with factory procedures.
When it’s safe to keep driving
If the only symptom is a stability control light and the car drives normally, you can usually drive carefully to a shop for diagnosis. However, if ABS or SRS warning lights are on, or if braking/steering feel abnormal, stop driving and have the vehicle diagnosed. Modules that can’t communicate can disable safety functions — treat those codes seriously.
Tools and data you or a technician will need
- Full-function OBD-II scan tool that reads Hyundai manufacturer modules and freeze-frame data.
- CAN bus diagnostic tool or oscilloscope for verifying message signals.
- Digital multimeter for voltage/ground checks and sensor tests.
- Access to Hyundai technical service bulletins and reflash files for module programming.
Real-world examples
On some Hyundai models a drained battery then jump starting can corrupt module message formats, causing a U0416 to appear even though the wiring and sensors are fine. In that case a software reflash or module programming and clearing codes resolved the issue. In other cases, water intrusion at the ABS/VDC connector caused intermittent CAN errors — the correct fix was connector replacement and module programming to clear persistent faults.
Helpful resources
For background on vehicle stability systems see the official NHTSA overview of electronic stability control: NHTSA on Vehicle Stability Control.
How LockNCal can help
If your scan shows hyundai u0416, LockNCal provides targeted module programming and vehicle diagnostics to restore proper communication between VDC and other modules. We offer mobile and mail-in options for safety-related modules and programming — for example, our module programming service supports on-site programming and configuration. Learn more about our module programming services and vehicle safety work:
- Module programming
- Vehicle safety system services
- For airbag/SRS-specific module resets or mail-in options see our mail-in airbag module reset.
FAQ
Q: What does the hyundai u0416 code mean?
A: hyundai u0416 indicates invalid data was received from the Vehicle Dynamics Control (VDC) module — a communication or message-format error on the vehicle bus.
Q: Can I clear U0416 with a code reader?
A: Clearing codes with a basic reader can make the light go away temporarily, but the code will usually return unless the root cause (wiring, power, sensor, or module software) is fixed. Proper diagnosis is required.
Q: Is hyundai u0416 dangerous?
A: The code itself is a communication fault. If it accompanies ABS or SRS lights, those systems may be degraded — avoid driving aggressively and have it diagnosed promptly.
Q: Will replacing the VDC module fix U0416?
A: Replace only after testing. Many U0416 cases are wiring, connectors, or software related; if the module is replaced it will need correct programming per Hyundai spec.
Q: Can LockNCal fix hyundai u0416?
A: LockNCal provides diagnostics and module programming services that address communication faults like hyundai u0416 and can reprogram or reset modules as needed; we do not perform general mechanical repairs.
