Direct answer: B0010 13 on a Chrysler means the passenger frontal stage‑1 deployment control circuit has a detected fault — the car’s computer believes the passenger airbag squib or wiring is out of expected range. The correct path is a focused SRS diagnosis (scan, wiring and connector checks, occupant sensor check) and then either SRS module reset/programming or component replacement if the airbag or squib is deployed or shorted.
Key Takeaways
- B0010 13 Chrysler = Passenger Frontal Stage 1 Deployment Control — a fault in the passenger airbag deployment circuit.
- Scan first: freeze frame and DTC history point to wiring, occupant module, or a deployed squib.
- Do not rely on “repair kits” for pyrotechnic devices — replaced or reset by OEM procedures only.
- LockNCal handles SRS module reset/programming (mail‑in nationwide and mobile in DFW) and related diagnostics.
What B0010 13 Chrysler actually means
The stored DTC B0010 13 is reporting a problem in the passenger airbag’s Stage‑1 deployment control circuit (the squib or its wiring path). In plain terms: the restraint control module (RCM) saw resistance or a voltage pattern that doesn’t match a healthy passenger frontal stage‑1 circuit. That can come from a disconnected connector, damaged wiring, a short to ground or battery, a deployed airbag, or a fault inside another SRS component (seat occupancy/weight sensor, occupant classification module).
Common causes
- Loose or corroded connector at the passenger airbag or under‑seat occupant module.
- Damaged wiring from seat movement, previous work, or an impact.
- Deployed or partially fired passenger airbag or squib with abnormal resistance.
- Clock spring issues (if routing passes through steering on some models) or grounding problems.
- Faulty occupant classification/weight sensor reporting unexpected states.
- SRS module has stored crash data and needs clearing or reprogramming after a collision.
Driver symptoms you’ll notice
- Airbag warning light illuminated or flashing on the dash.
- Passenger airbag status (on/off) behaves inconsistently or shows wrong status.
- Some vehicles will disable the passenger airbag until the fault is cleared and verified.
- In rare cases, other interior airbags or seat belt pretensioner codes appear alongside B0010 13.

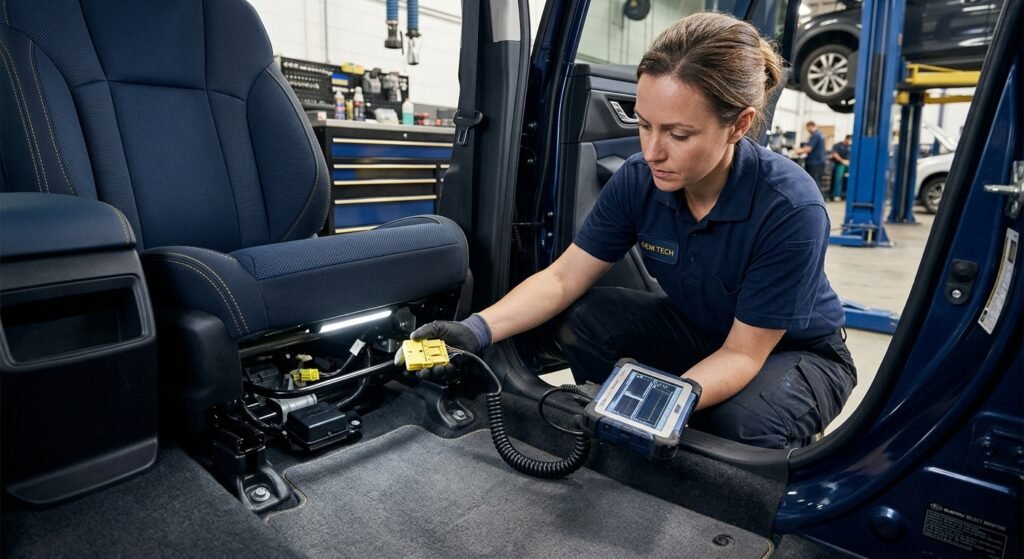

Step-by-step technician diagnosis (real tools, proper order)
Start with a full SRS scan tool that can read live data, freeze frame, and module status. Here’s an ordered checklist technicians use:
- Connect a diagnostic scanner that supports Chrysler SRS codes; read B0010 13 and any related codes (e.g., occupant module codes, squib open/short)
- Review freeze frame and vehicle history — was there a recent crash or deployment recorded?
- Visually inspect seat tracks, under‑seat connectors, and the passenger airbag connector for damage, loose pins, or corrosion.
- Check the passenger seat occupancy/weight sensor and occupant classification module (OCM) for proper mounting and connectors.
- Measure squib circuit resistance with the airbag system disabled per factory procedure (do NOT use an Ohm meter on live circuits without following safety steps). Compare to manufacturer spec.
- Inspect wiring continuity and shorts to ground/power from the squib connector back to the SRS module.
- If the airbag has deployed, verify replacement of the airbag and pretensioner is completed and check that the new components are correctly installed and connected.
- After wiring/components are verified, perform the SRS module reset or module programming as required and clear codes. Re-scan and road test or re‑seat occupant sensors to confirm code does not return.
Tools and expected results
| Tool | Purpose | Expected result |
|---|---|---|
| OEM-level SRS scan tool | Read DTCs, freeze frame, live data, clear crash data if authorized | Identify B0010 13 and related codes; ability to reset module if allowed |
| Digital multimeter (with SRS safety procedures) | Measure squib resistance, continuity, shorts | Resistance matches spec (not open or shorted) or identifies short/open |
| Wiring diagrams / factory service info | Identify connectors, pinouts, harness routing | Pinpoint likely failure areas and repair or replace affected harness/components |
What’s the correct fix?
There’s no universal “one-step” fix because B0010 13 points to the deployment circuit, not a single failing part. The correct outcome is either:
- Replace the failed safety component (for example, a deployed passenger airbag or a seat belt pretensioner that has fired), then perform module programming or replacement as the manufacturer requires.
- If wiring, connectors, or the occupant classification module are at fault, correct those faults and then reset or reprogram the SRS module so it recognizes the healthy circuit.
Important: do not use “airbag repair kits” or attempt to re‑use fired pyrotechnic devices. A deployed airbag or fired pretensioner is a single‑use pyrotechnic component that must be replaced, not repaired. LockNCal does not perform repairs; we provide diagnostic, module reset/programming, calibration, and replacement services where applicable.
When is it safe or unsafe to keep driving?
An illuminated airbag warning light means part or all of the supplemental restraint system may be disabled. If the passenger airbag is disabled or the vehicle shows multiple SRS faults, the car is less safe in a crash — avoid driving when possible until the issue is diagnosed and corrected. If you must drive a short distance, seat occupants properly (seat upright, belts fastened), but arrange professional diagnosis quickly.
Chrysler‑specific notes
Some Chrysler models use an occupant classification module (OCM) with sensors in the passenger seat; if the OCM reports erratic values, the RCM can flag B0010 13. Also, collision history stored in the SRS module can prevent a simple code clear — the module may need to be reset or reprogrammed per manufacturer procedures after airbag replacement or crash data removal.
Preventing B0010 13 after repairs
- Always reconnect and torque SRS connectors to factory specs and use new locking clips where required.
- After replacing airbags or seat belt pretensioners, ensure the SRS module is properly reset or reprogrammed with an OEM-capable tool.
- Confirm occupant classification module calibration and seat sensor connections are intact before clearing codes.
How LockNCal helps
If your Chrysler has B0010 13, the work typically needed is SRS diagnosis and then either a module reset/programming or identifying and replacing failed safety components. LockNCal offers nationwide mail-in airbag module reset service (free 2‑way shipping) and mobile SRS and safety system work in DFW. See our vehicle safety system services overview for related options including occupant module resets and module programming.
FAQ
What does B0010 13 mean on a Chrysler?
It means a fault was detected in the passenger frontal stage‑1 deployment control circuit — essentially the airbag squib or its wiring is outside expected parameters.
Can I clear B0010 13 myself with a code reader?
You can clear the code, but if the underlying fault remains the code will return and safety systems may be disabled. Proper diagnosis and SRS module reset/programming (if required) must follow manufacturer procedures.
Does LockNCal repair airbags or seat belts?
No. LockNCal does not perform repairs on pyrotechnic devices or seat belt hardware. We perform SRS diagnostics, module resets, module programming, occupant module resets, and can advise when replacement parts are required; replaced pyrotechnic components must come from OEM or certified suppliers.
Is it safe to drive with B0010 13 lit?
An illuminated airbag light means reduced protection. Avoid driving when possible and get the system diagnosed quickly. If you must drive, make sure all occupants wear seat belts and sit properly.
How long does a module reset take?
For mail‑in SRS module reset service, many modules return in about 24 business hours after arrival (see the service page for current turnaround). Mobile visits vary by location and vehicle.
